Control-S Standard: Importing inspection reports
Work > Control-S > Control-S Standard: Importing inspection reports

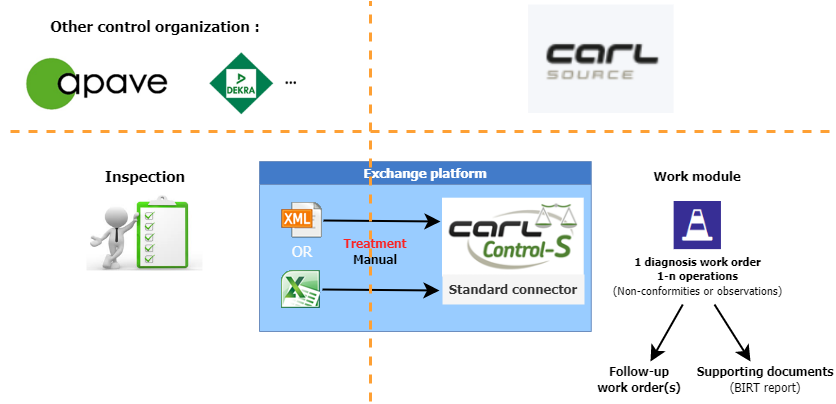

Operating principles (Standard connector)



The CSV and XML files to be imported must be in the proper format:



CSV file

The sent file must comply with the WOEXTPROVIDER_1.0 standard norm provided for this purpose in CARL Source.
This standard describes the following record types:

  1. Information from the diagnostic work order,
  2. The comments (i.e. the work order operations),
  3. The description of each of the comments,
  4. Suggested solutions for each of the comments,
  5. The report in PDF format.
To obtain files complying with this standard, an option has to have been subscribed with the service provider.
CSV file example
Copy the code
WOEXTPROVIDER;DUB003;DUB003;DOMAIN1;2020-04-03 00:00:00;PROVIDER1;LIMONEST; fire door inspection;OK;2020-04-03 00:00:00;2020-04-03 00:00:00 OBSEXTPROVIDER;BARCODE11;BOOKMARK11;EQPTREFVENDOR11;NOK;2020-04-01 00:00:00;MATERIALCODE11;2020-04-01 00:00:00;OBSERVATIONID11;SERIALNUMBER11;LOCATIONCODE11;LOCATIONOBS11;true;REGULATIONITEM111;REGULATIONITEM211;REGULATIONITEM311;REGULATIONITEM411 OBSDESC;OBSDESCRIPTION11; PRECONIZATION;PRECONIZATION11; OBSEXTPROVIDER;BARCODE12;BOOKMARK12;EQPTREFVENDOR12;RES;2020-04-01 00:00:00;MATERIALCODE12;2020-04-01 00:00:00;OBSERVATIONID12;SERIALNUMBER12;LOCATIONCODE12;LOCATIONOBS12;true;REGULATIONITEM112;REGULATIONITEM212;REGULATIONITEM312;REGULATIONITEM412 OBSDESC;OBSDESCRIPTION12; PRECONIZATION;PRECONIZATION12;



XML file

The sent file must comply with the WOEXTPROVIDER integration object provided for this purpose in CARL Source.
This object is based on the following record types:

  1. Information from the diagnostic work order,
  2. The comments (i.e. the work order operations),
  3. The description of each of the comments,
  4. Suggested solutions for each of the comments,
  5. The report in PDF format.
To obtain files complying with this interface, an option has to have been subscribed with the service provider.
XML file example
Copy the code
<?xml version="1.0" encoding="UTF-8" ?>
<entities externalSystem="EXTSYS-STD" exchangeInterface="WOEXTPROVIDER_XML_IN">
    <WOExtProvider>
          <woextprovider_workId>int: 11769309372021L / report: 11769309372021L001TCTH001#1</woextprovider_workId>
          <woextprovider_workCode />
          <woextprovider_workDomain>THERMIQUE</woextprovider_workDomain>
          <woextprovider_requestDate>2021-06-01 15:16:54</woextprovider_requestDate>
          <woextprovider_provider>APAVE</woextprovider_provider>
          <woextprovider_site>C.L.J.T.</woextprovider_site>
          <woextprovider_workDescription>THERMIQUE - VERIFICATION DES INSTALLATIONS DE CHAUFFAGE, VM</woextprovider_workDescription>
          <woextprovider_workComment>Site: C.L.J.T. / Address: / Post code: 75017 / Town: PARIS<br/> Customer ref.: / Name Client:</woextprovider_workComment>
          <woextprovider_workDateBegin>2021-04-08 00:00:00</woextprovider_workDateBegin>
          <woextprovider_workDateEnd>2021-04-08 00:00:00</woextprovider_workDateEnd>
          <woextprovider_materialCode />
          <woextprovider_boxMainCode />
          <woextprovider_boxLocationCode />
          <woextprovider_reports>
              <reportExtProvider>
                  <reportextprovider_nom_rap>11769309372021L001TCTH001</reportextprovider_nom_rap>
                  <reportextprovider_rap_date_premiere_diffusion>-- 00:00:00</reportextprovider_rap_date_premiere_diffusion>
                  <reportextprovider_nom_rapport>117693.09.37.21.L.001.TCTH.001.PDF</reportextprovider_nom_rapport>
              </reportExtProvider>
          </woextprovider_reports>
          <woextprovider_observations>
              <obsExtProvider>
                  <obsextprovider_barCode />
                  <obsextprovider_bookMark>Obs. N° 1</obsextprovider_bookMark>
                  <obsextprovider_eqptRefVendor>Réseau combustible/Examen documentaire/Dossier technique</obsextprovider_eqptRefVendor>
                  <obsextprovider_evaluation>3</obsextprovider_evaluation>
                  <obsextprovider_firstyearObservation>2020-01-01 00:00:00</obsextprovider_firstyearObservation>
                  <obsextprovider_materialCode />
                  <obsextprovider_obsDate>2021-04-08 00:00:00</obsextprovider_obsDate>
                  <obsextprovider_observationDescription>
                      <description>Dossier technique/à l accueil/Dossier technique/Document non présenté</description>
                  </obsextprovider_observationDescription>
                  <obsextprovider_observationId>342072074</obsextprovider_observationId>
                  <obsextprovider_preconization>
                      <description />
                  </obsextprovider_preconization>
                  <obsextprovider_serialNumber />
                  <obsextprovider_locationCode />
                  <obsextprovider_locationObs>à l'accueil</obsextprovider_locationObs>
                  <obsextprovider_recurrent>true</obsextprovider_recurrent>
                  <obsextprovider_regulationItem1 />
                  <obsextprovider_regulationItem2 />
                  <obsextprovider_regulationItem3 />
                  <obsextprovider_regulationItem4 />
               </obsExtProvider>
          </woextprovider_observations>
      </WOExtProvider>
</entities>



Manual import

Inspection reports are imported manually from the Work order function via the Import inspection reports action.



Automatic import

In this mode, no display through the HMI will be provided.

The jobs are then programmed through an Automatic job to be declared in the system module.

An automatic job must be created and configured for each Service Provider.
The class associated with automatic job is called: PROVIDCTRLIMPORTJOB.


The automatic job is based on an external system with the WOEXTPROVIDER_IN interface (for files in XML format) or WOEXTPROVIDER_IN_CSV (for files in CSV format) and a connection point.
The file (CSV or XML) must be included in the directory linked to the connection point associated with the service provider (CARL Source server, internal SFTP or directly pointing to the service provider's SFTP).

This job is configured through these settings:
